Evaluation board for MLX90421
EVB90421 Melexis
The EVB90421 provides an easy way to connect the MLX90421 Triaxis® magnetic sensor to a microcontroller or measurement device.
Top features
-
Pre-programmed for on-axis rotary motion sensing with a diametric magnet
-
10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation
-
MLX90421 Single-die SOIC-8 package
Evaluation board for MLX90421 - EVB90421
Product description
The EVB90421 contains a single MLX90421 IC mounted in the middle of a 25mm x 35mm PCB.

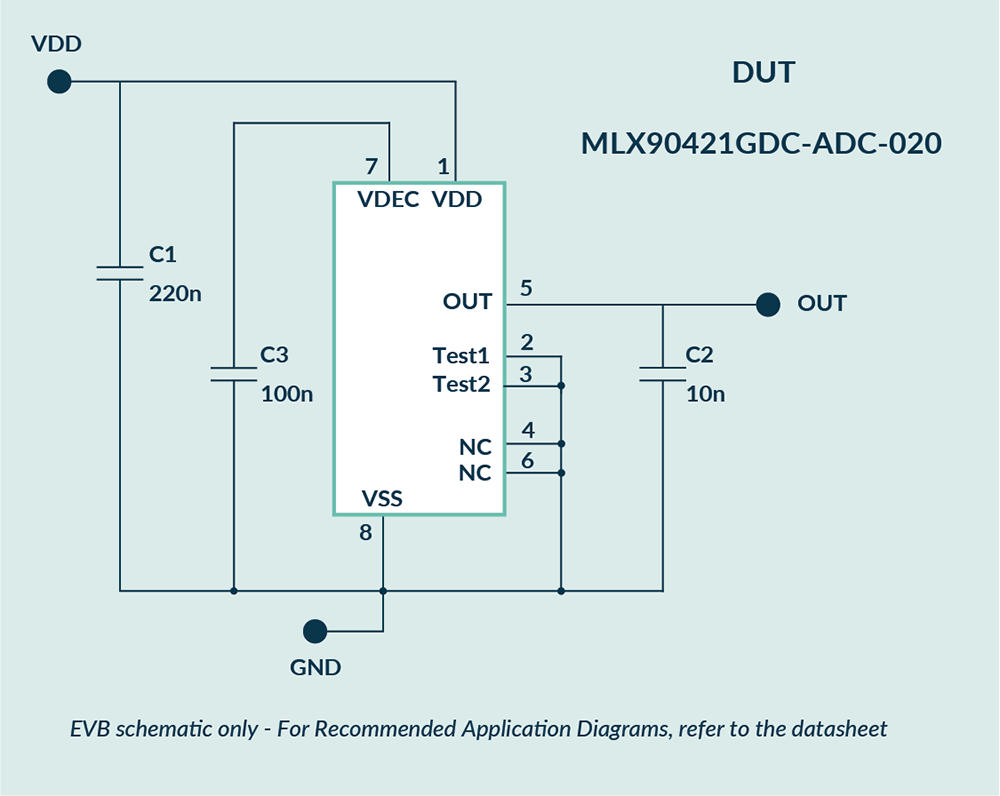

The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90421 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via an analog output signal.
Note: the product used on the EVB is pre-programmed and not memory locked. Therefore, if needed, it can be reprogrammed with the PTC-04 programmer .
| Order code | Product | Description |
| EVB90421GDC-020-Rev1 | MLX90421GDC-ADC-020 | Pre-programmed MLX90421 in single-die SOIC-8 package. Range 0-360 degrees, 10-90% Vdd analog output. Requires 2-pole magnet. |
| Magnet not included |
Features and benefits
-
Pre-programmed for on-axis rotary motion sensing with a diametric magnet
-
10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation
-
MLX90421 Single-die SOIC-8 package
