Programmable linear Hall-effect sensor IC
MLX90288 Melexis
MLX90288 is a SMD programmable linear Hall sensor IC with a ratiometric analog output targeted for small stroke rotary and linear position sensor applications. It can also be used for slow current sensing applications.
Top features
-
Analog ratiometric output
-
Adjustable sensitivity
-
Measurement range from ± 6 mT to ± 650 mT bipolar full scale
-
In-range and out-of-range programmable output quiescent voltage (Voq)
-
First and second order magnet TC compensation
-
Digital IIR filtering for accurate bandwidth
-
Offset trimming possible outside output range
-
16-bit customer ID number (48-bit Melexis ID for traceability)
-
Reverse polarity and over-voltage protection
-
Extensive diagnostic features
-

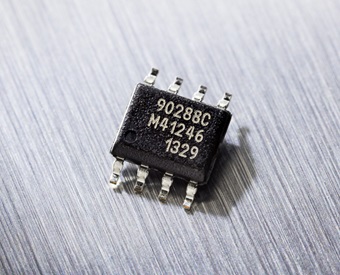

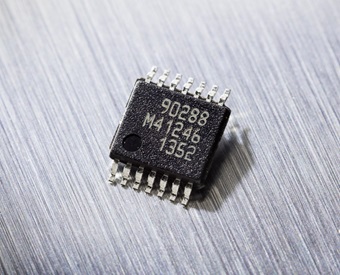

SOIC-8 package (surface-mount) lead-free & RoHS compliant
-
Hall plate quadrature spinning current/Chopper-stabilized amplifier
-
Programmable with the PTC-04 and the PTC-04-DB-HALL03 daughterboard
Programmable linear Hall-effect sensor IC - MLX90288
Product description
MLX90288 is a SMD programmable linear Hall sensor IC with a ratiometric analog output targeted for small stroke rotary and linear position sensor applications. It can also be used for slow current sensing applications.
All magnetic response functions of the MLX90288 are fully programmable for versatility and system tolerances reduction (end-of-line calibration).
The output quiescent voltage Voq (i.e. Vout @ B = 0 Gauss), sensitivity, sensing polarity, the magnitude of sensitivity drift over temperature (TC - first and second order), the clamping levels, the thermal Voq drift and the signal bandwidth, are all programmable through the connector terminals (Vdd-Vss-Out).
It features active error correction circuitry (quadrature spinning current and chopper-stabilized amplifier), which virtually eliminates the offset errors normally associated with Hall-effect devices.
The MLX90288 has a very stable thermal compensation for both the sensitivity and the Voq over a broad temperature range.
Features and benefits
-
Analog ratiometric output
-
Adjustable sensitivity
-
Measurement range from ± 6 mT to ± 650 mT bipolar full scale
-
In-range and out-of-range programmable output quiescent voltage (Voq)
-
First and second order magnet TC compensation
-
Digital IIR filtering for accurate bandwidth
-
Offset trimming possible outside output range
-
16-bit customer ID number (48-bit Melexis ID for traceability)
-
Reverse polarity and over-voltage protection
-
Extensive diagnostic features
-
SOIC-8 package (surface-mount) lead-free & RoHS compliant
-
Hall plate quadrature spinning current/Chopper-stabilized amplifier
-
Programmable with the PTC-04 and the PTC-04-DB-HALL03 daughterboard
