Bipolar Hall-effect sensor switch - Very high sensitivity
US2882 Melexis
The US2882 is a bipolar Hall-effect switch designed in mixed signal CMOS technology that integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
Top features
-
Wide operating voltage range from 3.5 V to 24 V
-
Very high magnetic sensitivity
-
CMOS technology
-
Chopper-stabilized amplifier stage
-
Low current consumption
-
Open drain output
-
AEC-Q100 qualified
-
Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages
-
SE package North Pole active
- UA package South Pole active
Bipolar Hall-effect sensor switch - Very high sensitivity - US2882
Product description
The US2882 is a bipolar Hall-effect switch designed in mixed signal CMOS technology.
This device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is suitable for use in automotive and consumer applications.

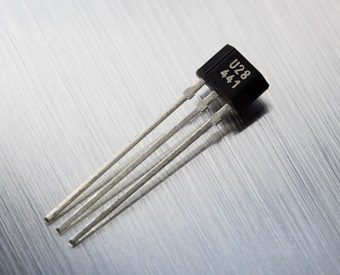

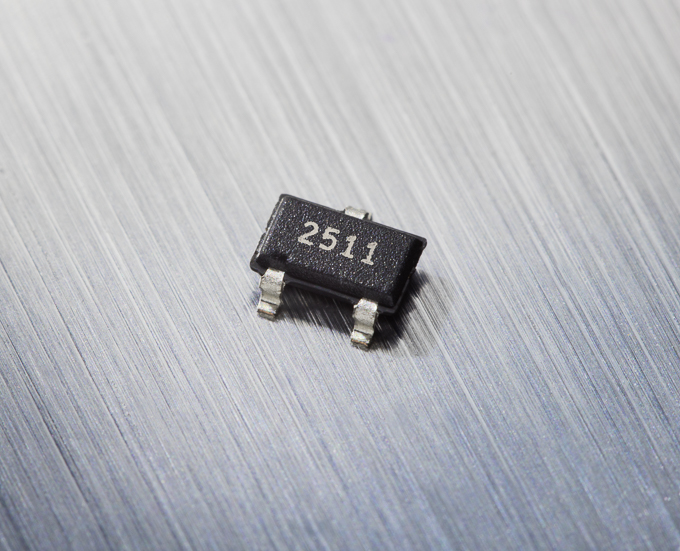

This device is delivered in a TSOT for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount. Both 3-lead packages are RoHS compliant.
Features and benefits
-
Wide operating voltage range from 3.5 V to 24 V
-
Very high magnetic sensitivity
-
CMOS technology
-
Chopper-stabilized amplifier stage
-
Low current consumption
-
Open drain output
-
AEC-Q100 qualified
-
Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages
-
SE package North Pole active
- UA package South Pole active
