Hall-effect switch - ultra low power consumption for automotive
MLX92235 Melexis

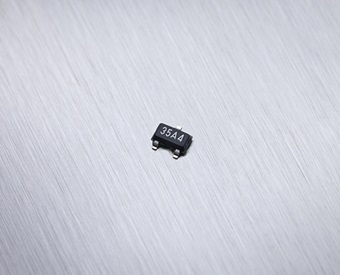

The MLX92235 is an ultra low power Hall-effect switch with best-in-class tolerances for reliable and predictable output update rate. This automotive tiny device is made for micropower open-close detection.
Top features
-
Micropower consumption in operation
-
0.9μA at 1.8V/11Hz
-
1.2μA at 3.3V/11Hz
-
1.2μA at 1.8V/22Hz
-
1.6μA at 3.3V/22Hz
-
-
Best in class min/max IDD tolerances
-
for a stable and predictable power budget
-
- Typical sleep current 0.65 μA at 1.8V
- Operating voltage range from 1.6V to 3.3V
- Push-pull or Open Drain output type
- No external components required
- Selectable Sleep time 0.6ms to 800ms
- Ambient temperature from -40°C to 105°C
- Chopper stabilized very sensitive Hall sensor
- Selectable magnetic thresholds and temperature coefficient
- Various magnetic functions: Unipolar, Omnipolar Switch
- Under-Voltage Reset protection
-
Packages, RoHS compliant
-
TSOT-3L (SE) 2.8mm x 2.9mm
-
Hall-effect switch - ultra low power consumption for automotive - MLX92235
Product description
The MLX92235 is an ultra low power Hall-effect switch with best-in-class tolerances for reliable and predictable output update rate. This automotive tiny device is made for micropower open-close detection.
The MLX92235 has an integrated logic for automatic Sleep/Awake sequencing enabling 1μA average current consumption without any action from the user (depending on the selected product). During the Awake state the chip is comparing the applied magnetic field to the predefined magnetic thresholds and updates its output accordingly. During Sleep state the OUT state remains unchanged regardless of the magnetic field. The OUT state will be refreshed during the next Awake period. The MLX92235 can be selected with various functions: magnetic thresholds, magnetic functions and sleep times.
This versatile Hall-effect switch serves as a general replacement for reed switches, offering enhanced solid-state reliability. The MLX92235 is particularly well-suited for battery-powered devices, lid open/close detection, wake-up switches, and other low-voltage applications where minimizing current consumption is critical.
Application examples
- Brake light/ wake-up switch
- E-Latch / e-door Handle
- Sunvisor / Vanity Mirror
- Button / HMI / Levers
- Seat positioning / folding
- Proximity sensor, Reed switch replacement, open/close detection
Features and benefits
-
Micropower consumption in operation
-
0.9μA at 1.8V/11Hz
-
1.2μA at 3.3V/11Hz
-
1.2μA at 1.8V/22Hz
-
1.6μA at 3.3V/22Hz
-
-
Best in class min/max IDD tolerances
-
for a stable and predictable power budget
-
- Typical sleep current 0.65 μA at 1.8V
- Operating voltage range from 1.6V to 3.3V
- Push-pull or Open Drain output type
- No external components required
- Selectable Sleep time 0.6ms to 800ms
- Ambient temperature from -40°C to 105°C
- Chopper stabilized very sensitive Hall sensor
- Selectable magnetic thresholds and temperature coefficient
- Various magnetic functions: Unipolar, Omnipolar Switch
- Under-Voltage Reset protection
-
Packages, RoHS compliant
-
TSOT-3L (SE) 2.8mm x 2.9mm
-
Documents and tools
Application note(s)
Datasheet(s)
Product flyer(s)
Selection guide(s)
Environmental
IC handling and assembly
Related tech talks
Videos
Magnetic Latch Switch: Experience matters
25+ years in Latch & Switch has given Melexis a unique view of market needs. Decisions taken in 1993 to focus on CMOS technology and TSOT packaging are just as valid today as they were then.
Step-by-step guide to Latch & Switch portfolio
During this video, Thomas Strauven, Applications Engineer for Latch & Switch, guides you through the Melexis selection guide for the Latch & Switch portfolio. This selection guide is a parametric document that allows you to find and compare the specifications and features of our extensive Latch & Switch portfolio.
